3D modelling and CAD 2D drawings for engineering projects

Our multi-industry experience ensures our engineering teams can support any design requirements, from concept through to manufacturing drawings. We use a fit-for-purpose approach (while maintaining code compliance) to ensure that our clients receive the best possible value for money throughout a project’s lifecycle.

Our engineers are backed up by our draughting team, who are fully conversant with the latest CAD software packages - both for 3D modelling and 2D drawing production. We have been contracted to supply our design skillset across a range of applications, sectors and project sizes.

Recent engineering design projects include:

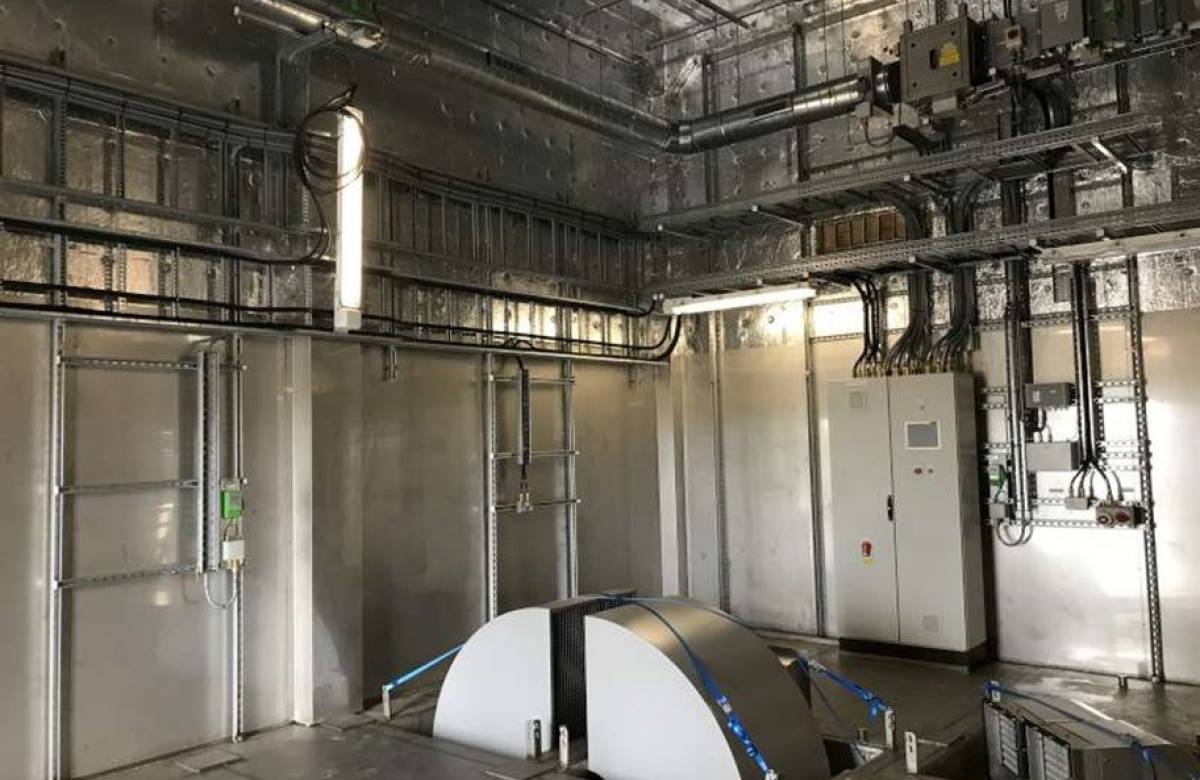

  • High Integrity plant containers
  • Pressure vessels
  • Steel structures

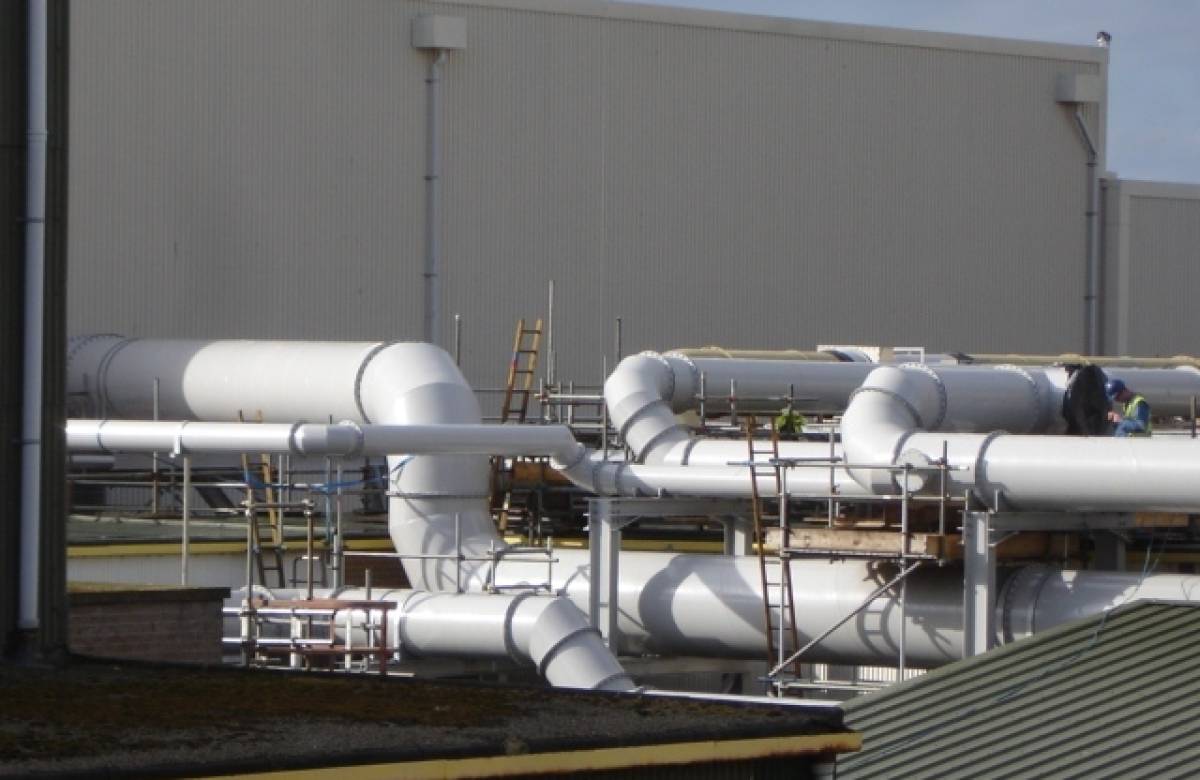

  • Pipework layouts
  • Storage tanks
  • Hvac Systems & ductwork
  • Controls and instrumentation
  • Electrical design
  • Trace heating system
